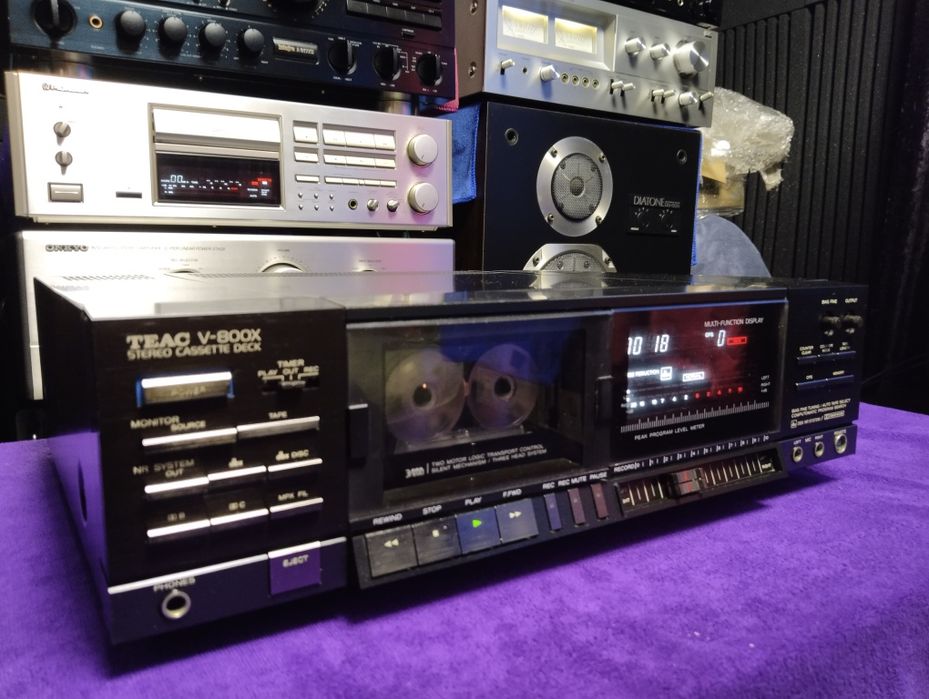

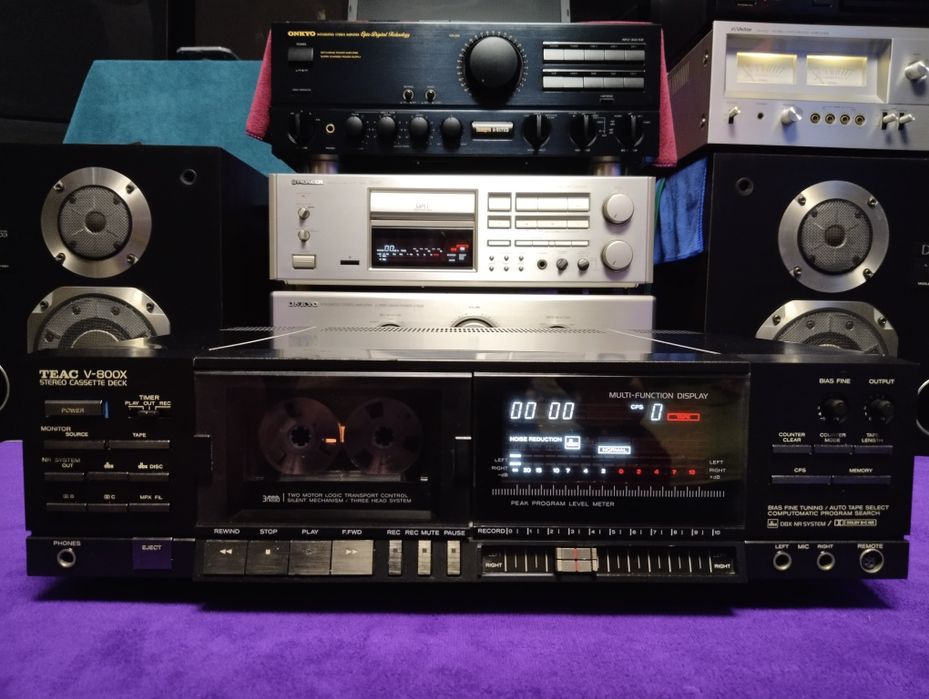

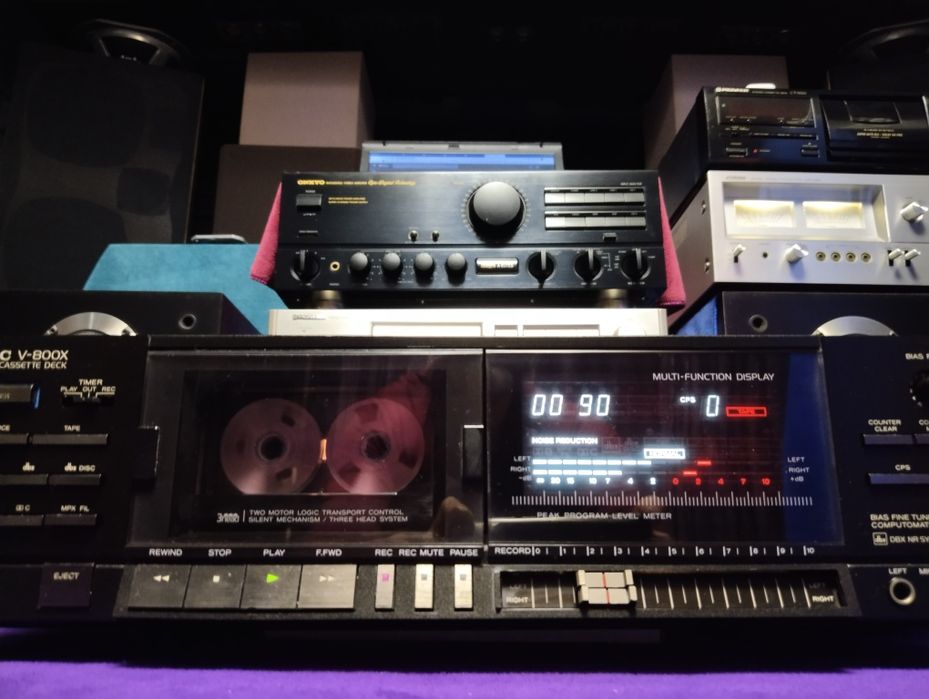

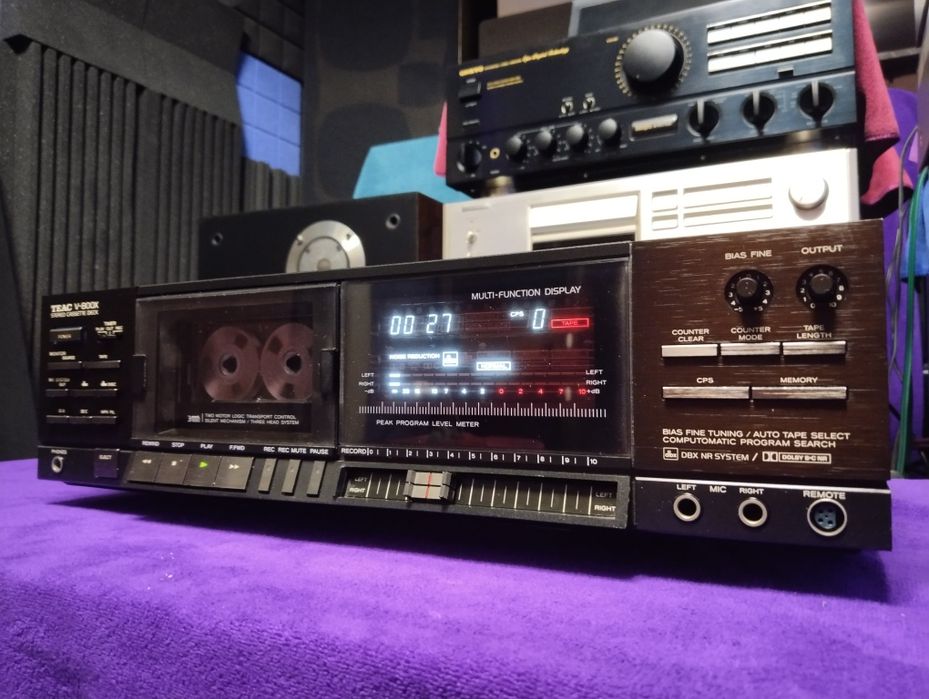

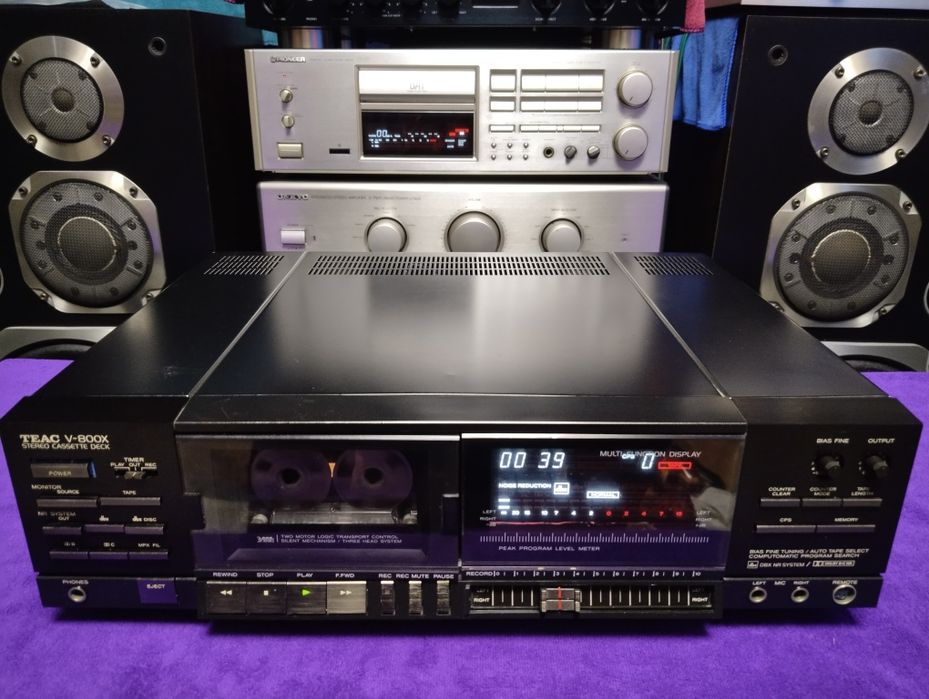

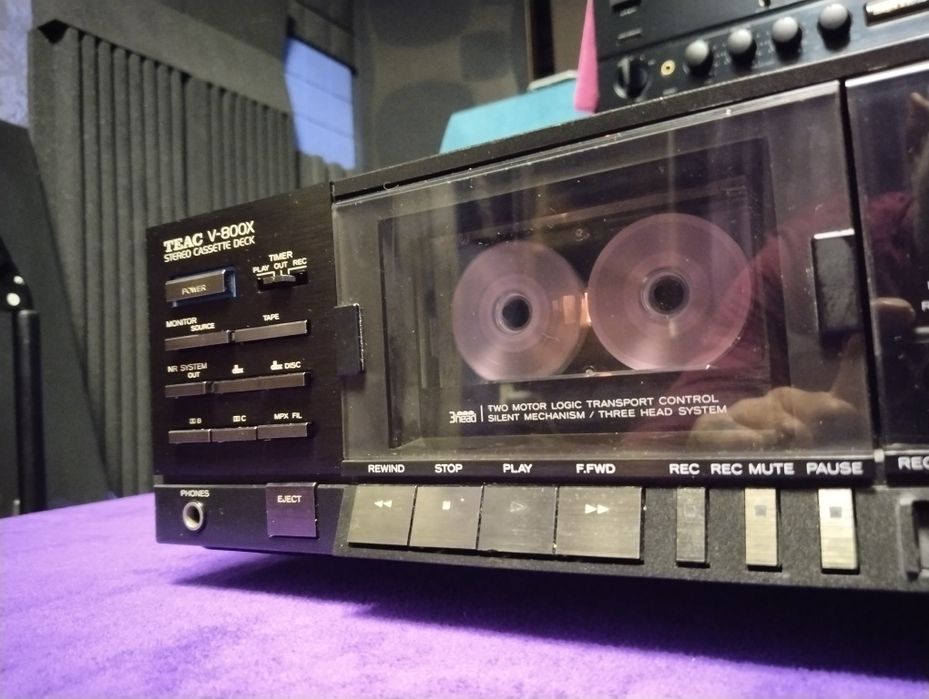

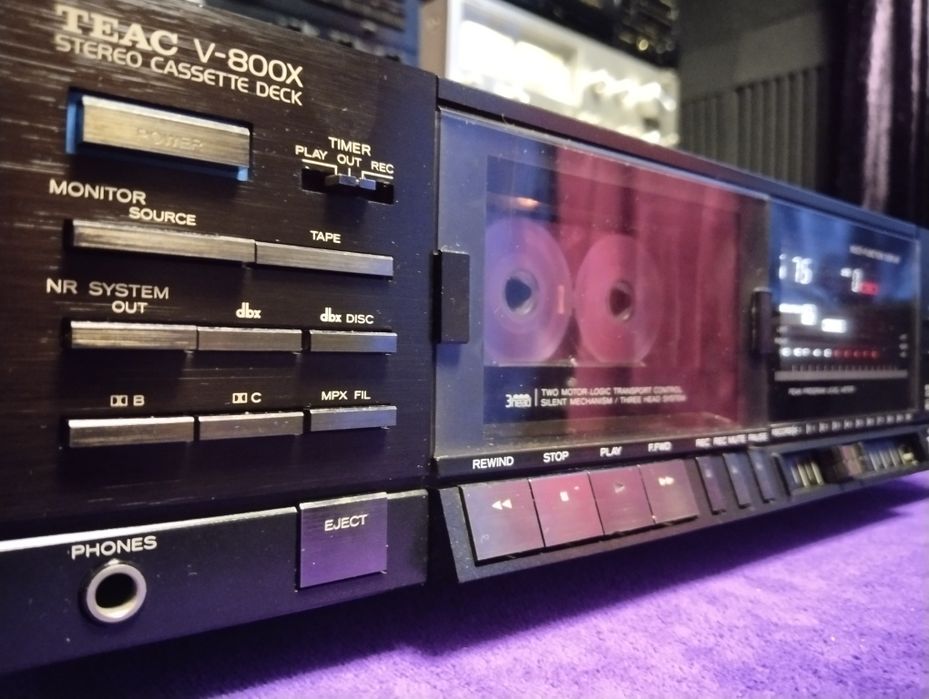

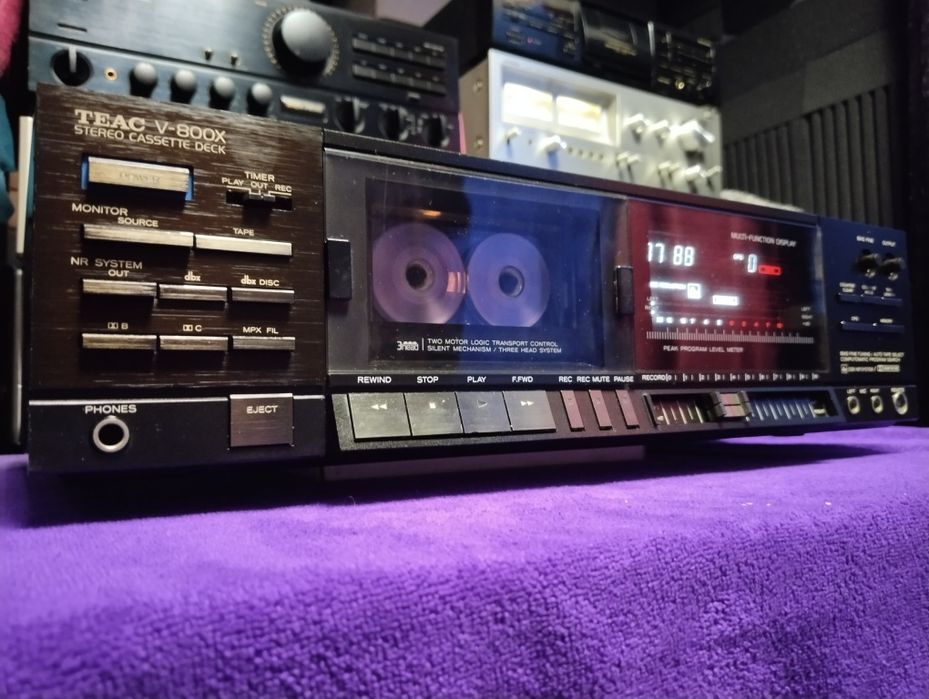

TEAC V-800 X
Type: Cassette Tape Deck
Years of manufacture: 1983 - 1987
Made in: Japan
Color: Black
Remote control: yes, RC-203
Power consumption: 100V, 38 W
Dimensions: 432 x 114 x 327 mm (WxHxD)
Weight: 7,5 kg

Connections

Number of inputs:
Line In: 275 mV, 50 kOhm
Line In DIN: 60 mV, 50 kOhm

Microphone: 0.25 mV, > 200 Ohm
Number of outputs:
Line Out: 435 mV, 50 kOhm
Line Out DIN: 30 mV, 50 kOhm

Headphones: 4 mW, max. 8 Ohm

Technical Data

Audio heads: 3
Recording: 1
Playback: 1
Delete: 1
Motors: 2
Recording/playback: DC FG Servo for direct drive Capstan
Coils: DC Coil Motor
Synchronous speed fluctuations: 0.035 %
Tape types:
Frequency Response:
Normal: 25 - 18'000 Hz, ± 3 dB
Chrome: 25 - 19'000 Hz, ± 3 dB
Metal: 25 - 20'000 Hz, ± 3 dB

Distortion factor: 2.5
Signal-to-noise ratio:
Dolby Off: 59 dB (1 kHz)
Dolby B On: 69 dB above 5 kHz
Dolby C On: 79 dB over 1 kHz
DBX On: 92 dB over 5 kHz
Dolby B, C, DBX (1 kHz)
DBX Dynamic Range: 110 dB (1 kHz)
Pre-magnetization and erase frequency:
Rewind time: 90 seconds for C-60 cassette.
