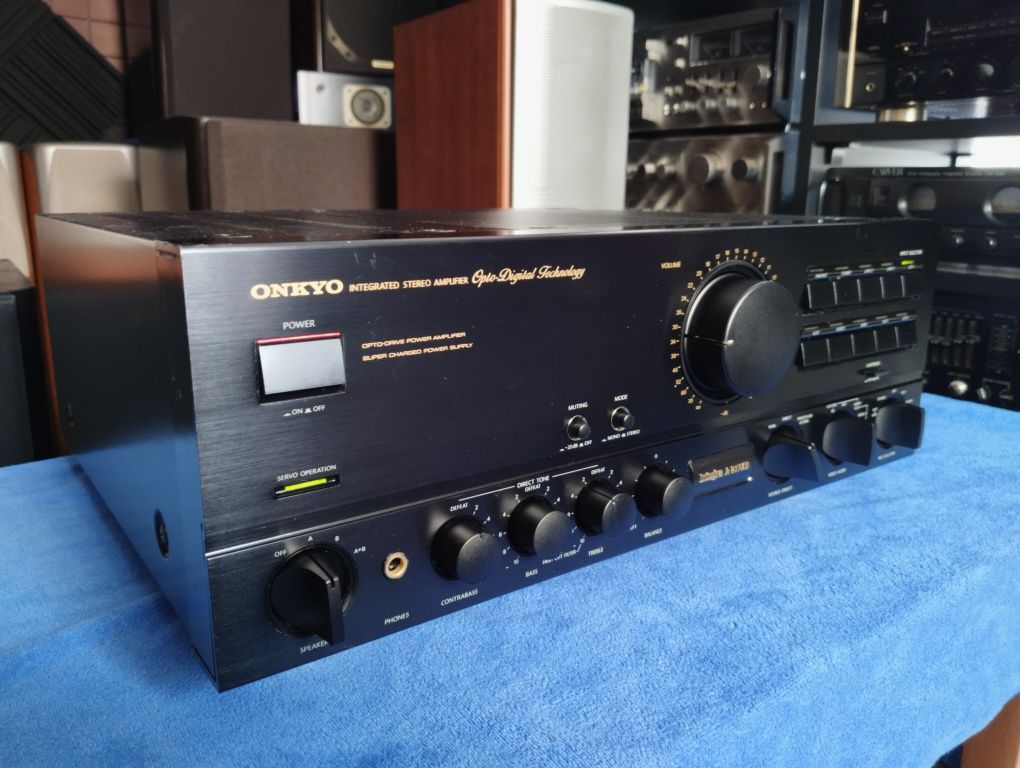

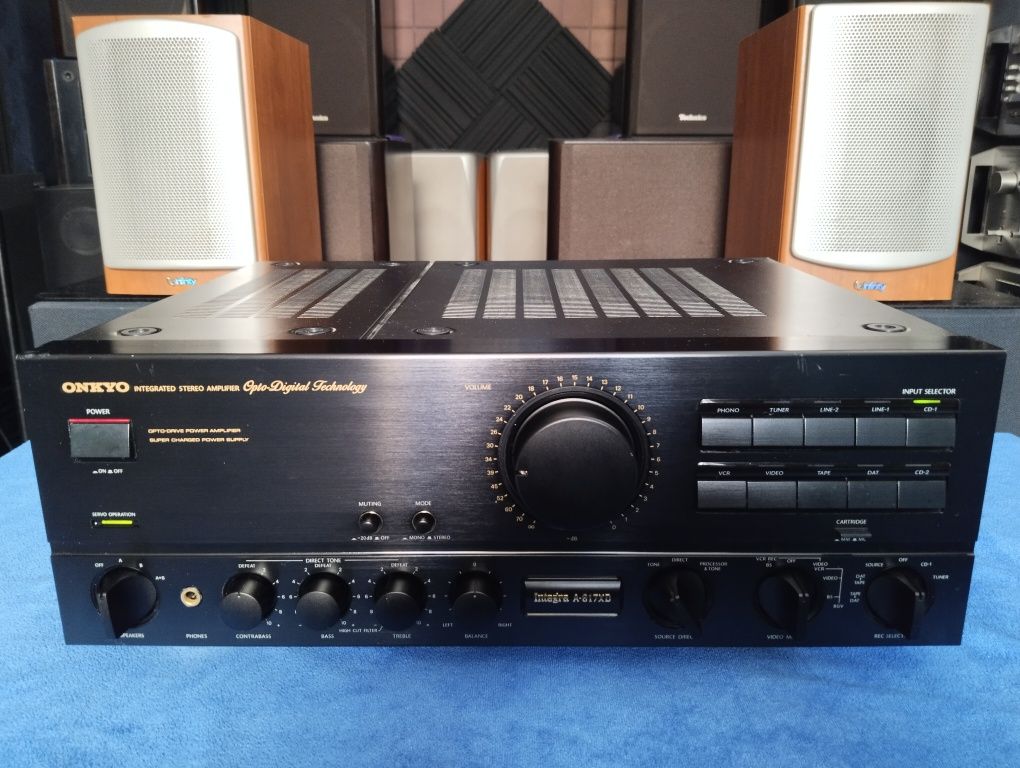

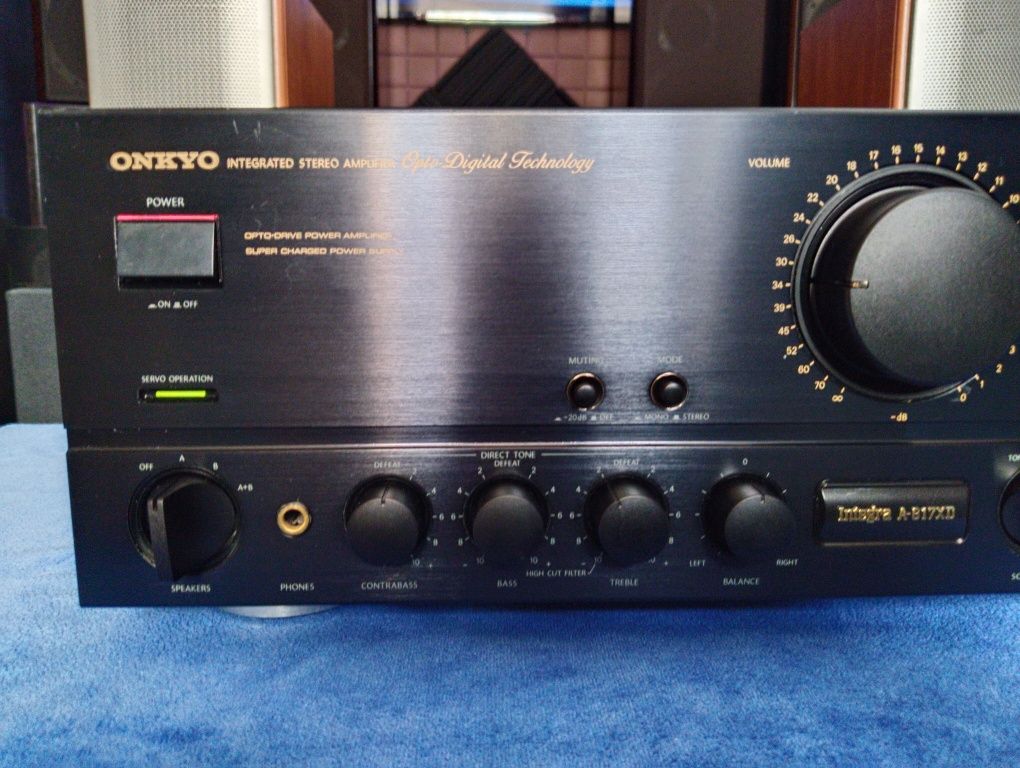

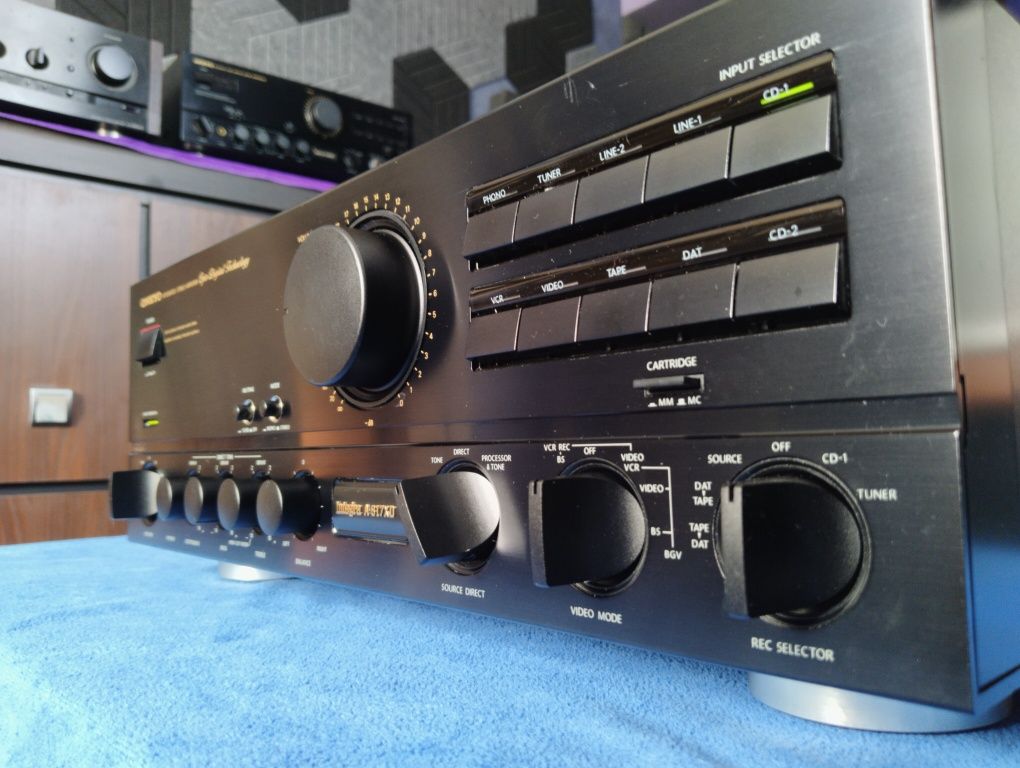

ONKYO Integra A-817XD ¥ 79,800 (released in October 1988)
Made In Japan

Rated Output (20 Hz ~ 20 kHz) 105W + 105W (CD → SP-OUT, 8 Ω, Both channel drive)
120W + 120W (CD → SP-OUT, 6 Ω, Both channel drive)
Dynamic Power 190W + 190W (6 Ω)
235W + 235W (4 Ω)
295W + 295W (2 Ω)
Total harmonic distortion rate (20 Hz to 20 kHz) 0.004% (CD → SP-OUT, at rated output, 8 Ω)
Intermodulation distortion factor (20 Hz to 20 kHz) 0.004% (CD → SP-OUT at Rated Output)
Powerbandwidth 5 Hz ~ 100 kHz (IHF-3dB THD 0.2% 8 Ω)
Damping factor 100 (1 kHz 8 Ω)
Frequency Response (CD → SP Out) 2 Hz ~ 100 kHz + 0 -3dB
Input Sensitivity / Impedance Phono MM : 2.5mV/47k Ω
Phono MC : 160 μ V/220 Ω
CD, Tuner, Tape-PB, DAT-PB, Line : 150mV/47k Ω
Processor-In : 150mV/47k Ω
Video, VCR-PB : 150mV/47k Ω
Rated output voltage / impedance Tape-Rec, DAT-Rec, VCR-Rec : 150mV/560 Ω
Processor-Out : 150mV/560 Ω
Video input / output VCR-PB, DAT-Rec, Video, BS, Video Moni out : 1Vp-p/75 Ω
Equalizer Amplifier Section
Frequency response (RIAA deviation, Phono → Rec) 20 Hz to 20 kHz ± 0.2 dB
Phono maximum allowable input
(1kHz/10kHz, 0.005%) MM:210mV/1000mV
MC:13mV/65mV
Total harmonic distortion factor
(20 Hz to 20 kHz, Rec3V output) MM:0.003%
MC:0.015%
Overall Characteristics
SN ratio (IHF-A filter input short) Phono MM : 94 dB (5 mV input)
Phono MC : 75 dB (0.5 mV input)
CD, Tuner, Tape-PB, DAT-PB, Line : 107 db
Tone Control Maximum Change
(Volume -16dB) Treble : 20 kHz, ± 8 dB
Bass : 20 Hz, ± 10 dB
Contrabass : 20 Hz, + 10 dB
Muting -20dB
Power supply voltage 100 VAC, 50Hz/60Hz
Power consumption 210W
AC outlet Switched : 2 systems, total 100W
Unswitched : 1 line, 100W
External dimensions Width 435x Height 169x Depth 392 mm
Weight 16kg
