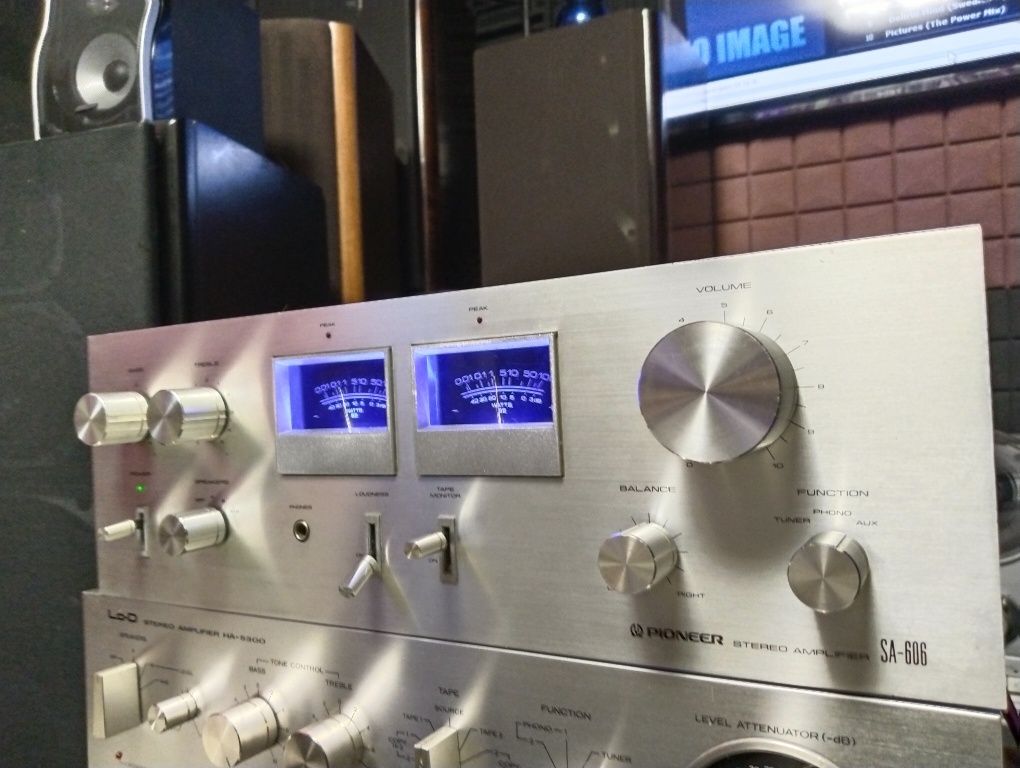

Manufacturer: Pioneer
Model: SA-606
Type: Integrated amplifier

Years of manufacture: 1978 - 1979
Made in: Japan
Color: Silver
Remote control: no
Power consumption: 420 Watt max type HG, 100 Watt type S and S/G
Dimensions (WxHxD): 42,0 x 14,7 x 26,1 cm
Weight: 7,5 kg
Original price approx.: 580 DM

Connections:

Number of inputs: 4
Phono 2,5 mV/ 50 kohm
Tuner, AUX, Tape, 150 mV/ 50 kohm
Number of outputs: 2 pairs of speakers
Speaker: A,B, A+B
Tape Rec

Technical data:

Continuous power (at distortion factor)
8 Ohm: 2x 40 Watt RMS (0,05 %)
8 Ohm: 2x 45 Watt 1 kHz (DIN)
4 Ohm: 2x 50 Watt 1 kHz (DIN)
Dynamic power
8 Ohm: 2x Watt
4 Ohm: 2x Watt
Total harmonic distortion: 0.05% at 40 watts, 0.02% at 20 watts
Damping factor: 30 (8 ohm, 20-20 khz)
Frequency response: phono (20-20 khz) ±0.3 dB, rest (20-40 khz) ±2 dB
Signal-to-noise ratio: 58 dB (phono), 60 dB (rest)

Tone control: treble and bass
Bass: +12 dB, -10 dB (100 hz) Treble: +10 dB, -10 dB (10 khz)

Loudness: at -40 dB, +6dB (100 Hz), +3 dB (10 khz)
